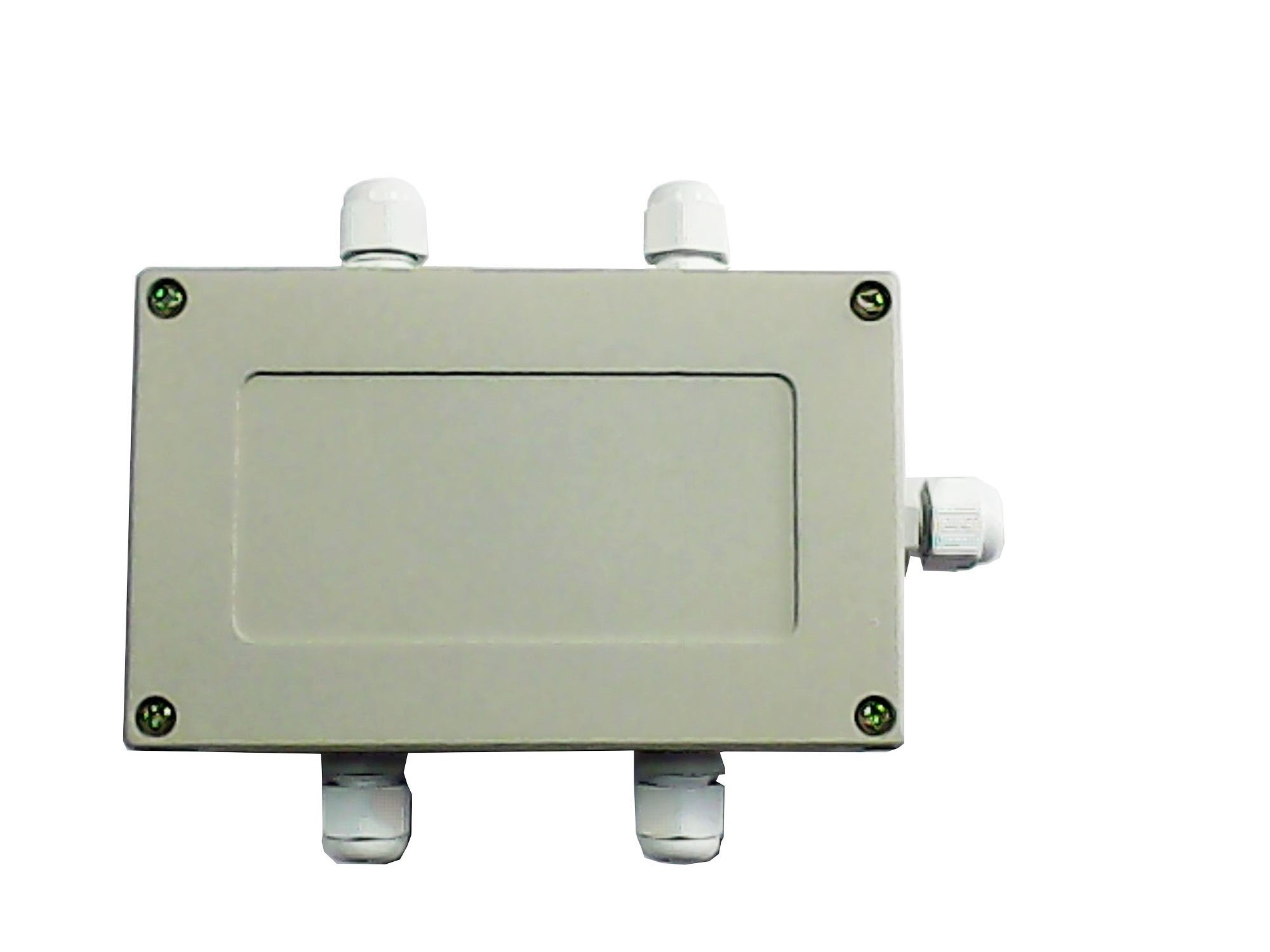

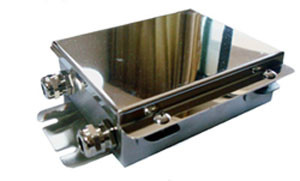

Waterproof junction box LZXL-J04 aluminum/steel.

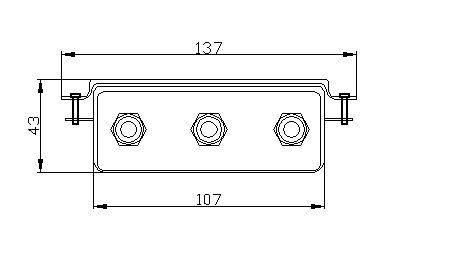

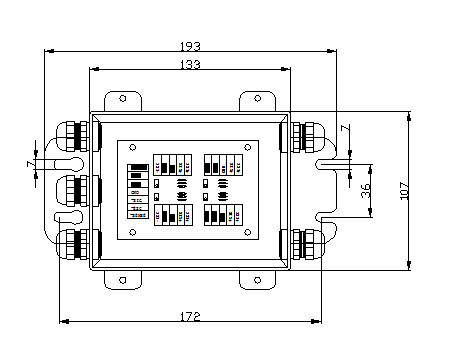

Overview of junction box technology.
1. Product use: weigh the platform scale, weigh the packing machine, weigh the weighing, weigh the weighing, weigh and weigh the belt scale, and sum the conveyor scale.
2: adjustable potentiometer in the junction box to adjust the resistance value of 2.4k, which is mainly used to adjust the zero point of the sensor.
By adjusting the potentiometer in the junction box, the structure of the whole body is balanced to ensure the accuracy and stability of the system work.
3: the XL-J04 has a unique shielding terminal, sealing waterproof connector, and protection grade IP68.
Note: 1: the color label of the sensor may be different. Please refer to the wiring diagram of the instrument when wiring.
GND sensor shielding.
Wiring method 2
Red +EXC sensor for bridge power supply.
The yellow-exc sensor is used for the negative end of the bridge power supply.
The blue +S IG sensor outputs the positive terminal.
White -S IG sensor output signal negative terminal.
Red +EXC sensor for bridge power supply.
The kick
Black -EXC sensor for bridge power negative end.
The kick
The green +S IG sensor outputs the positive terminal.
White -S IG sensor output signal negative terminal.
Yellow GND sensor shield.
